Mile Marker
2500 lb. Winch | PE2500
Unleash top performance with the Mile Marker PE2500 ATV winch. With 2500 lb. pulling capacity, high speeds, and a submersible design, it's your ultimate off-road companion.
Military Grade
12-Volt Electric Winch
4-Bolt Pattern
At only 18.5 pounds, the Mile Marker PE2500 winch for ATVs boasts top-of-the-line recovery speeds and an impressive 2500 pounds of pulling capacity. Fully-sealed, submersible, water, mud, and snow proof, the PE2500 includes a 3/16” x 42’ Steel Cable, a roller fairlead, a hook, corrosive-resistant, and a handheld remote control and a handle bar mounted remote control for versatility and convenience. With the all-metal, 2-stage planetary gear train, 200-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE2500 provides the durability and reliability you can depend on in the most extreme situations.
Main Features:
• 2.4 HP Permanent Magnet Motor
• All Metal Planetary Gearing
• Submersible, 200 Amp Solenoid
• Automatic Load Holding Brake
• Center Focused Drum
• Fast Line Speeds
• 42′ of Steel Cable or 50' Synthetic Rope
• Roller Fairlead or Aluminum Hawse
• Waterproof

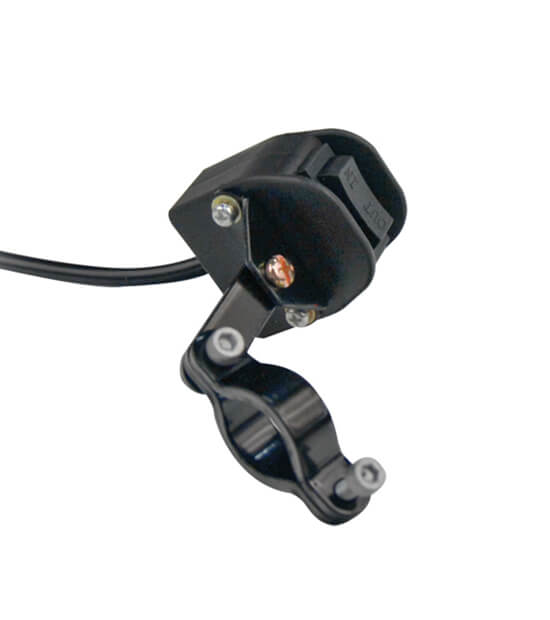

• Handheld and Handlebar Controls
| Part Numbers | 77-50105BW |
| Rated line pull | 2500 lbs (1134 kg) Single Line |
| Gear Train | 3 Stage Planetary |
| Gear Ratio | 242:1 |
| Motor | Permanent Magnet, 2.4 hp (1.5kw), 12 VDC |
| Remote Control | Power-In, Power-Out Remote, 12’ (3.7 m) |
| Dimensions (LxWxH) | 13.0” X 4.18” X 4.3” (330 mm X 106.2 mmX 109.2 mm) |
| Steel Cable | 3/16” X 42’ (nominal 4200 lbs, 1905 kg) (4.8 mm X 12.7 m) |
| Drum Size Diameter/Length |
2” X 3.15” (50.8 mm X 80 mm) |
| Net weight | 18.5 lbs (11 kg) |
| Bolt Pattern | 4 Bolt Pattern, 4.88” X 3”,n(124 mm X 76.2 mm) |
| LINE PULL | LINE PULL | LINE SPEED | LINE SPEED | MOTOR CURRENT |
|---|---|---|---|---|
| lb | kg | fpm | mpm | amps @ 12 V |
| 0 | 0 | 24 | 7.3 | 41 |
| 500 | 227 | 21.8 | 6.64 | 70 |
| 1000 | 454 | 17.1 | 5.2 | 100 |
| 2000 | 907 | 10.9 | 3.32 | 175 |
| 2500 | 1134 | 7.5 | 2.28 | 212 |
